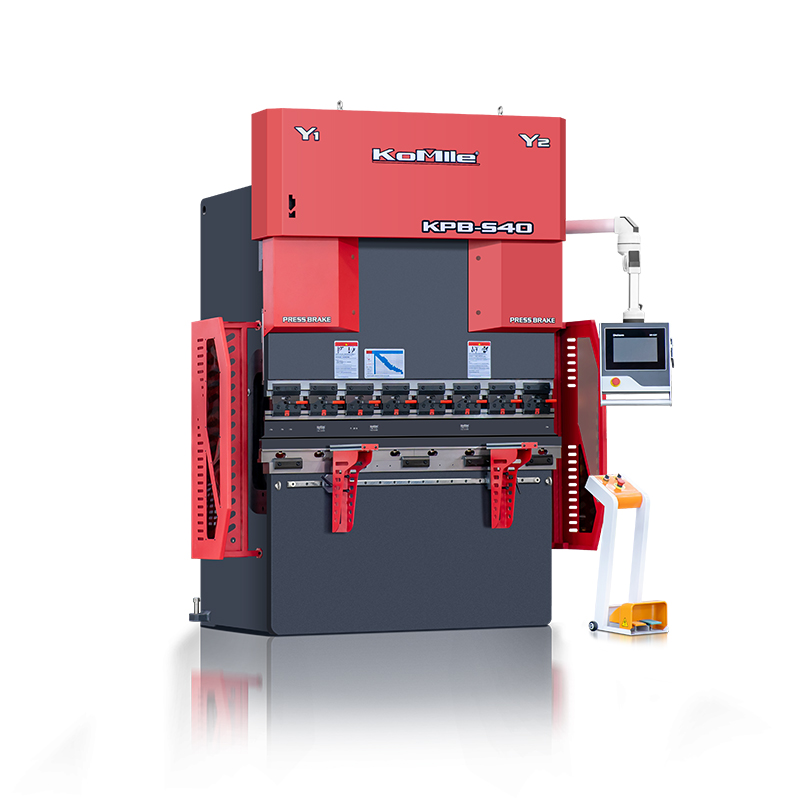

公称压力
Nominal pressure | 400KN | 机器外侧宽度
Breadth of the machine | 1700mm |
滑块行程
Slider stroke | 160mm | 机器外侧深度
Lateral depth of the machine | 1400mm |
数控轴数
Numerical control axis number | 4(+2) | 机器总高
Total machine height | 2300mm |

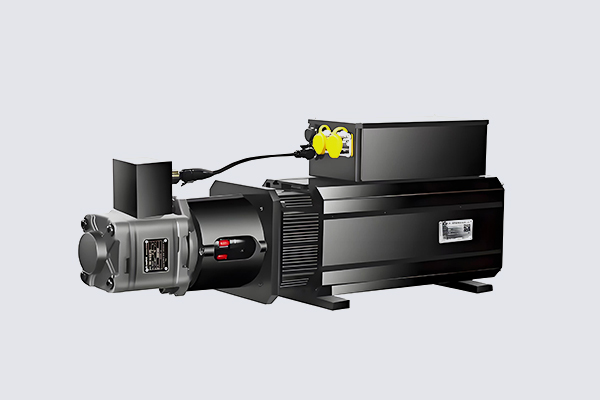

主电机功率
Main motor power | 5.5KW | 工作台长度
Workbench length | 1600mm |
滑块运行速度
Running speed of slider | 快下
Fast | 250mm/s | 立柱间距
Column spacing | 1210mm |
工作
Work | 15mm/s | 开启高度Open height | 430mm |
回程
Retum trip | 180mm/s | 喉口深度Throat depth | 300mm |

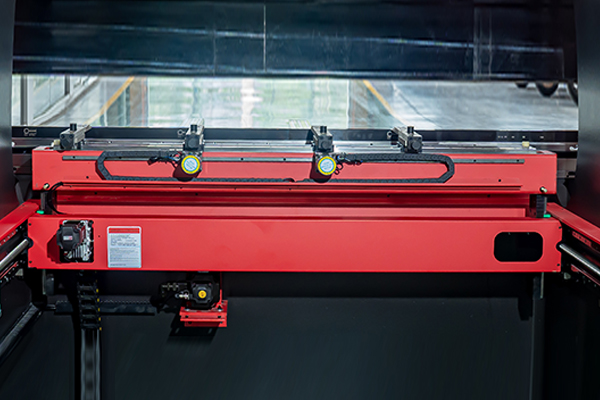

后挡料X轴
Real gear X shaft | 行程
Trip | 500mm | 注:
Y1、Y2轴-控制滑块上下运动
X轴-控制后挡料前后运动
R轴-控制后挡料上下运动
V轴-机械挠度补偿(选配）
Note:
Y1, Y2 axis -control sliding block up and down motion
X axis - back and forth movement of control rear qear
R axis - control up and down movement of post-gear
V axis -mechanical defection compengation(Optional) |
| 最大运行速度Maximum running speed | 600mm/s |
| 重复定位精度Repeatable positioning accuracy | 0.02mm |
后挡料R轴
Real gear R shaft | 行程
Trip | 160mm |
| 最大运行速度Maximum running speed | 300mm/s |
| 重复定位精度Repeatable positioning accuracy | 0.02mm |
