公称压力
Nominal pressure | 1300KN | 机器外侧宽度
Breadth of the machine | 4700mm |
滑块行程

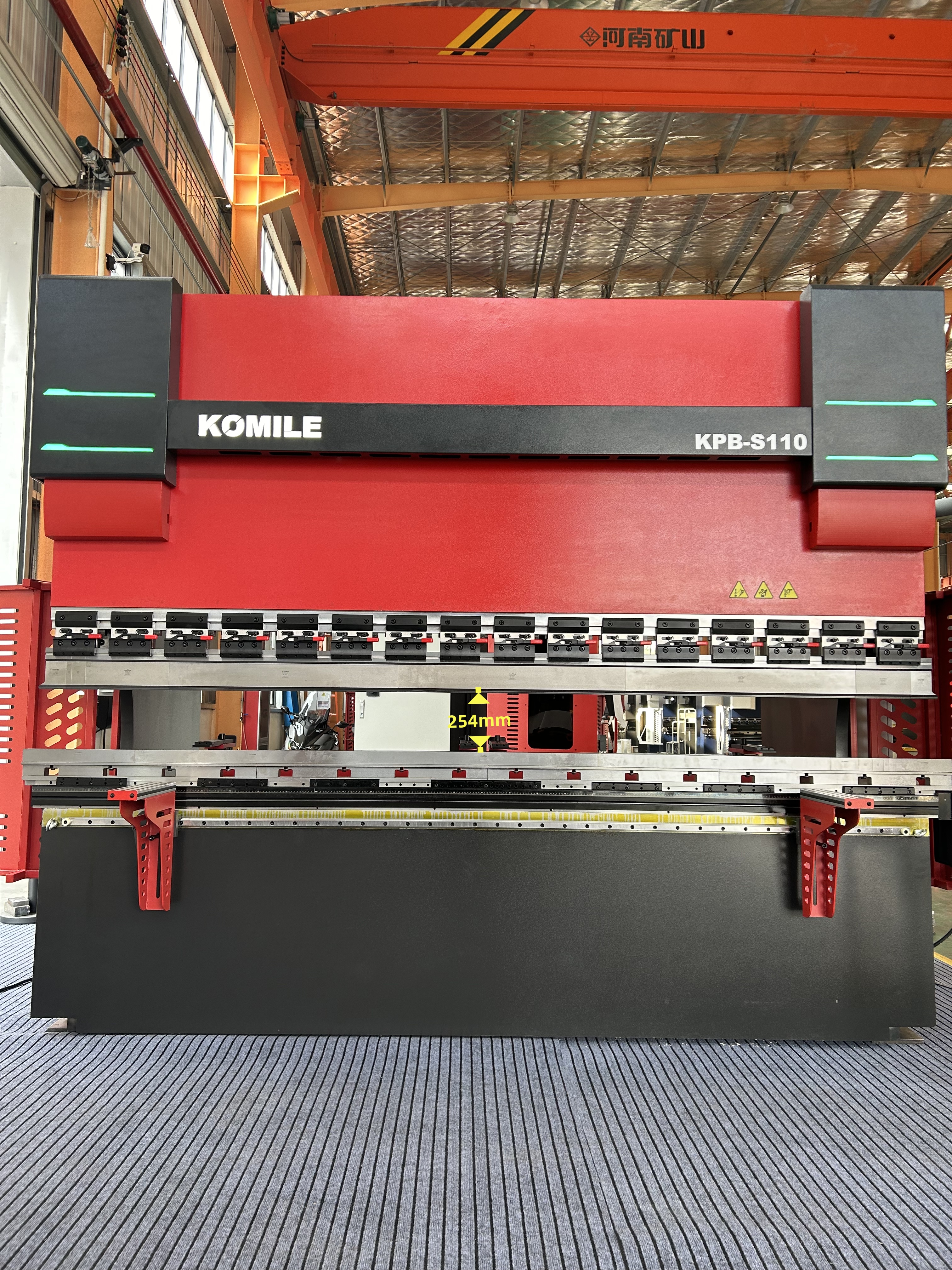

Slider stroke | 254mm | 机器外侧深度
Lateral depth of the machine | 1650mm（不含前托料） |

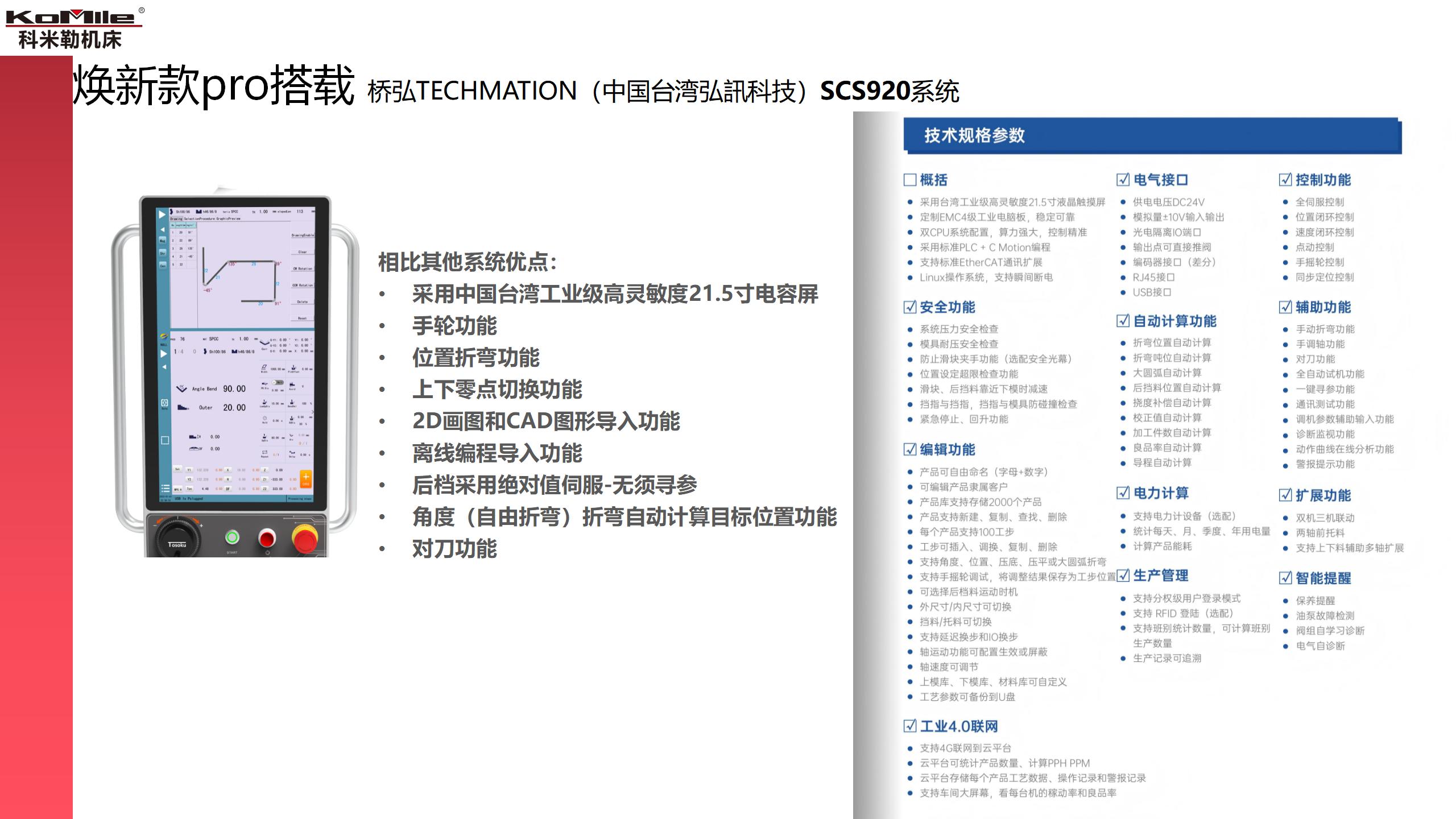

数控轴数
Numerical control axis number | 6+1 | 机器总高
Total machine height | 2750mm |
主电机功率
Main motor power | 13KW | 工作台长度
Workbench length | 4100mm |
滑块运行速度
Running speed of slider | 快下
Fast | 200mm/s | 立柱间距

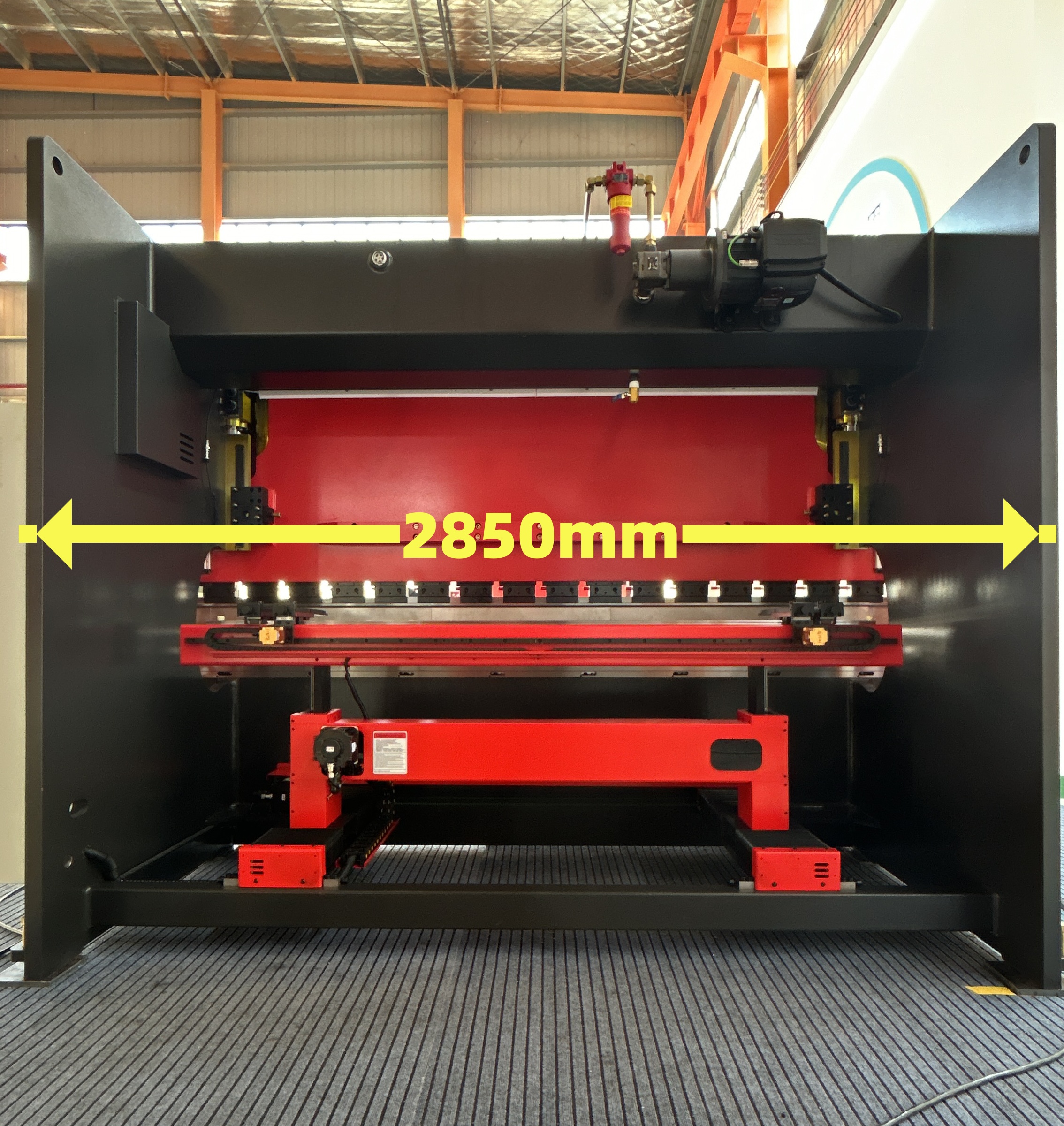

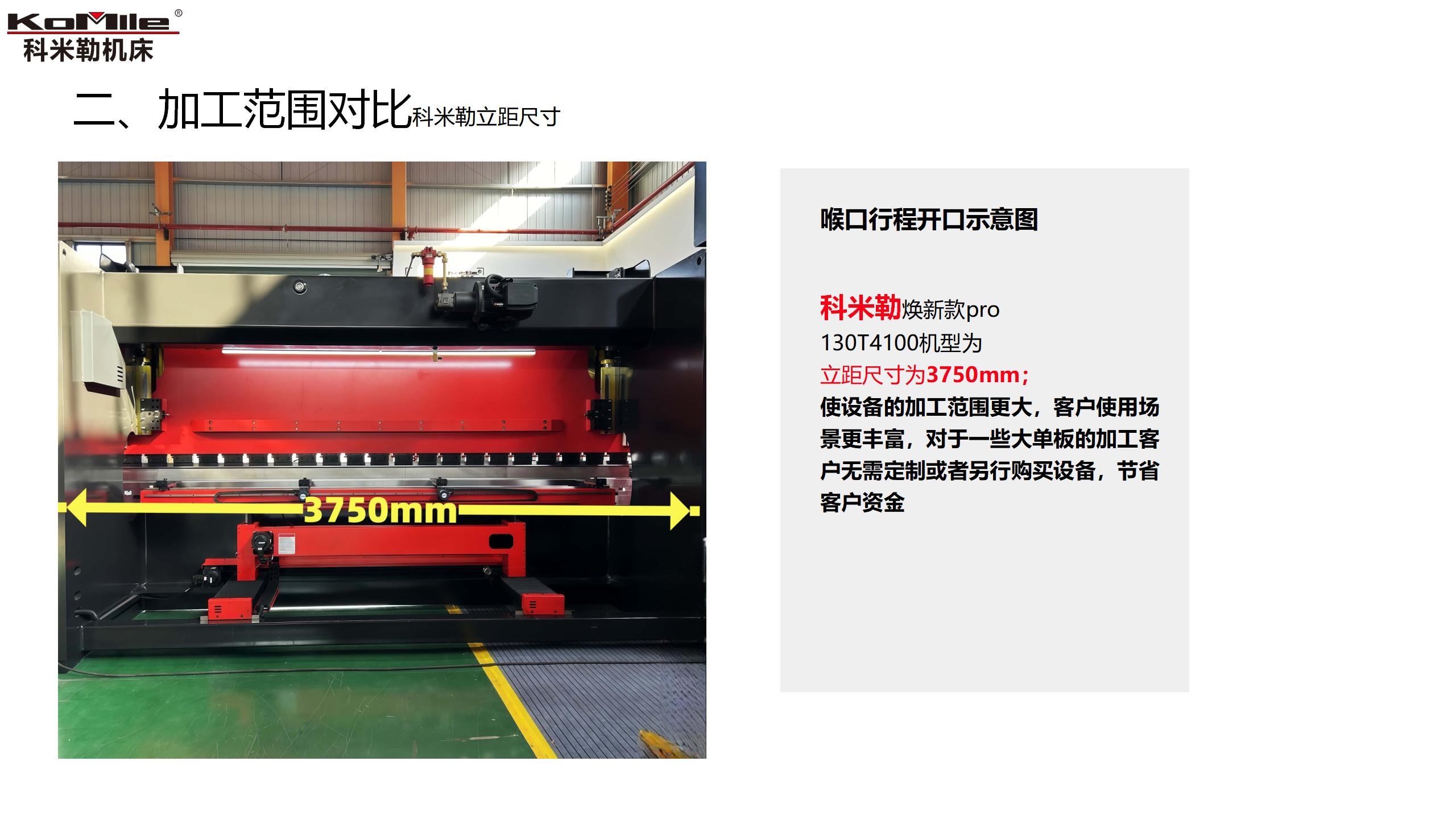

Column spacing | 3750mm |
工作

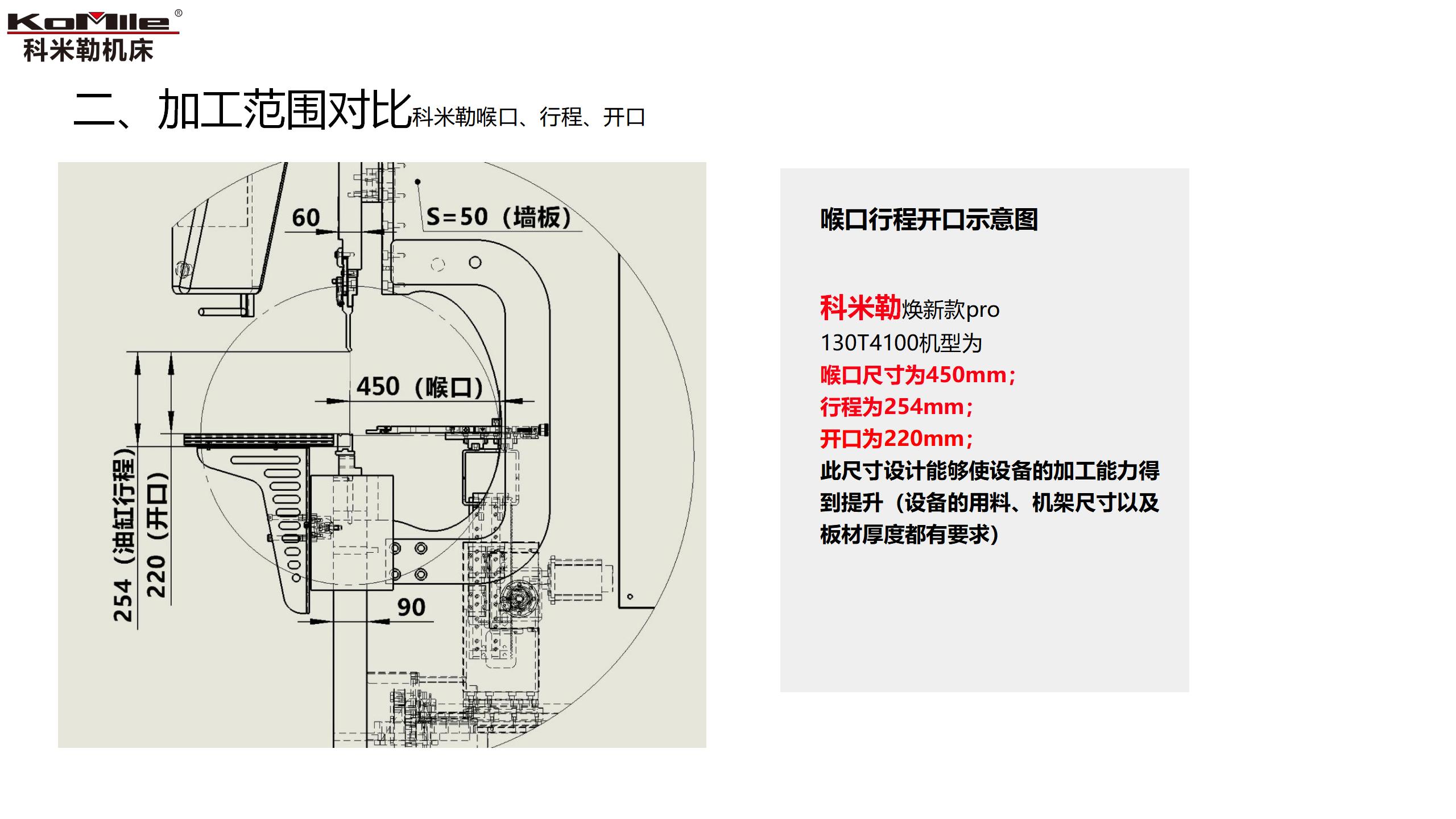

Work | 30mm/s | 开启高度Open height | 540mm |
回程
Retum trip | 200mm/s | 喉口深度Throat depth | 450mm |
后挡料X轴
Real gear X shaft | 行程
Trip | 500mm | 注:
Y1、Y2轴-控制滑块上下运动
X轴-控制后挡料前后运动
R轴-控制后挡料上下运动 Z1轴、Z2轴-控制左右定位位置 V轴-机械挠度补偿
Note:
Y1, Y2 axis -control sliding block up and down motion
X axis - back and forth movement of control rear qear
R axis - control up and down movement of post-gear Z1 Axis, Z2 Axis - Control the left and right positioning positions V axis -mechanical defection compengation |
| 最大运行速度Maximum running speed | 500mm/s |
| 重复定位精度Repeatable positioning accuracy | 0.02mm |
后挡料R轴
Real gear R shaft | 行程
Trip | 160mm |
| 最大运行速度Maximum running speed | 300mm/s |
| 重复定位精度Repeatable positioning accuracy | 0.02mm |
