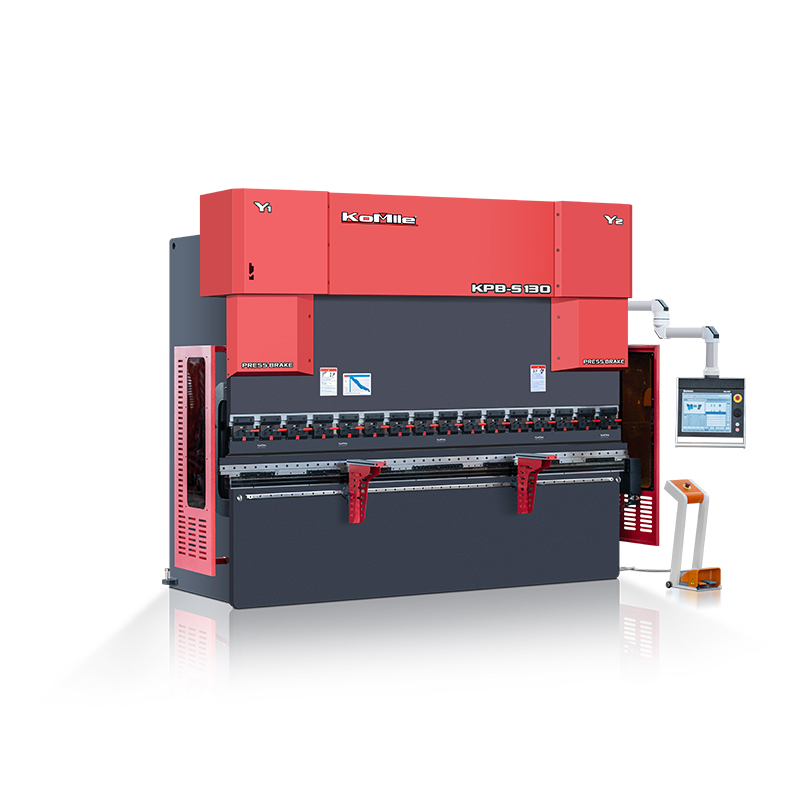

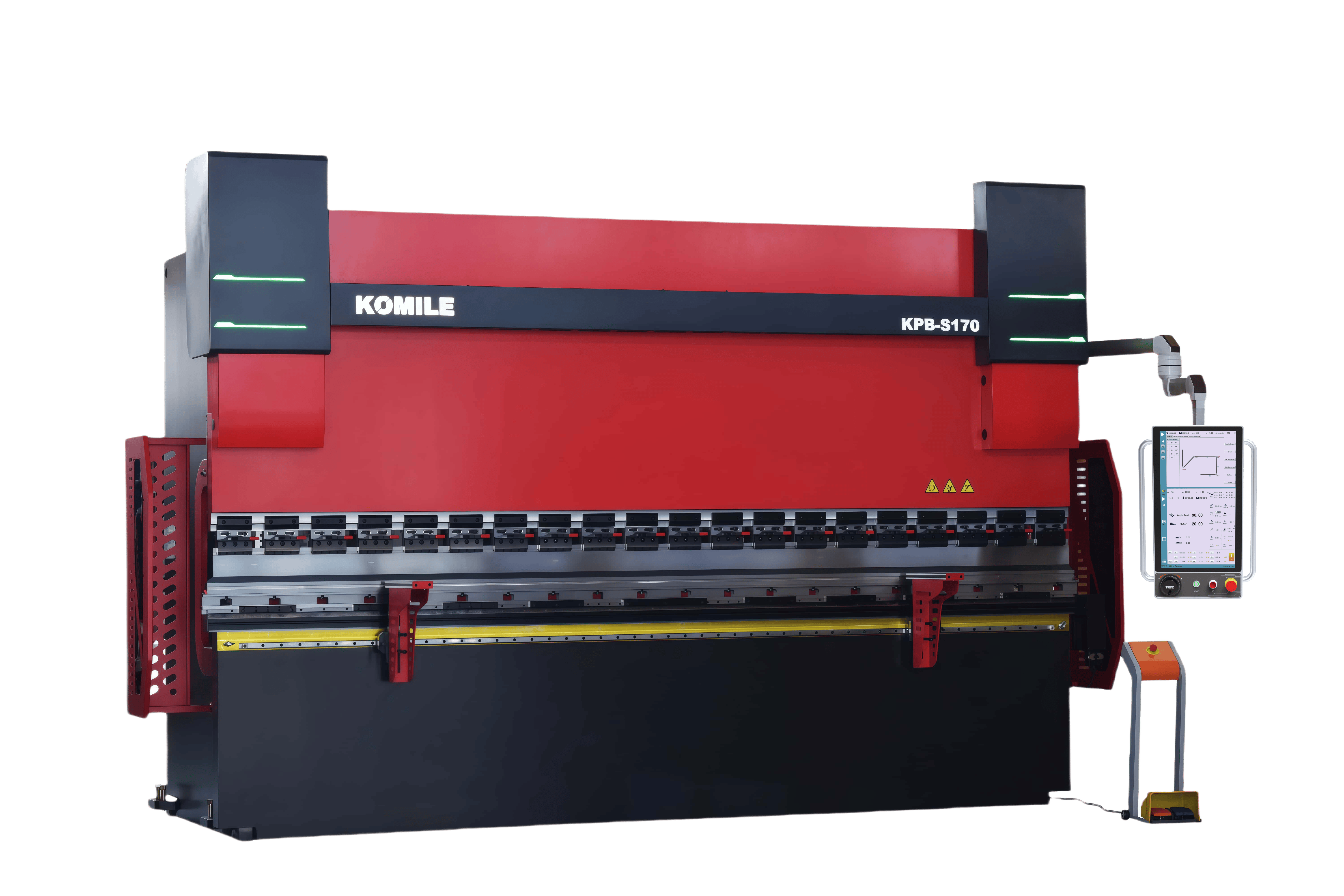

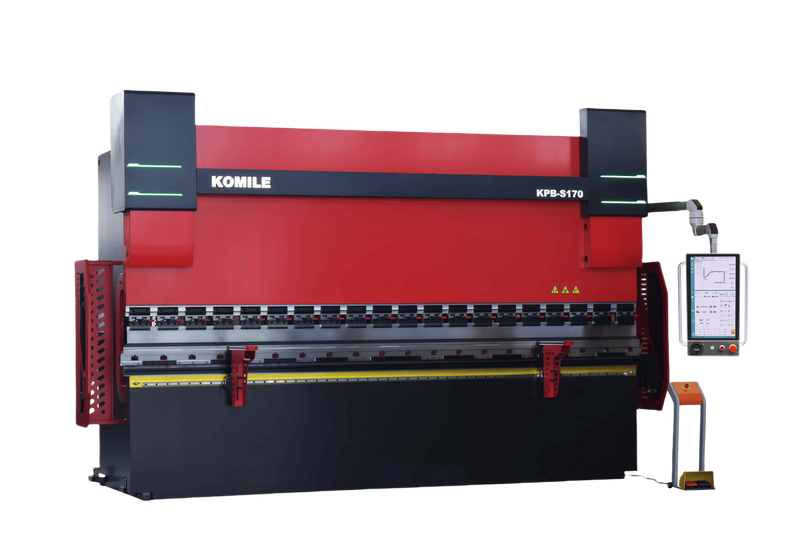

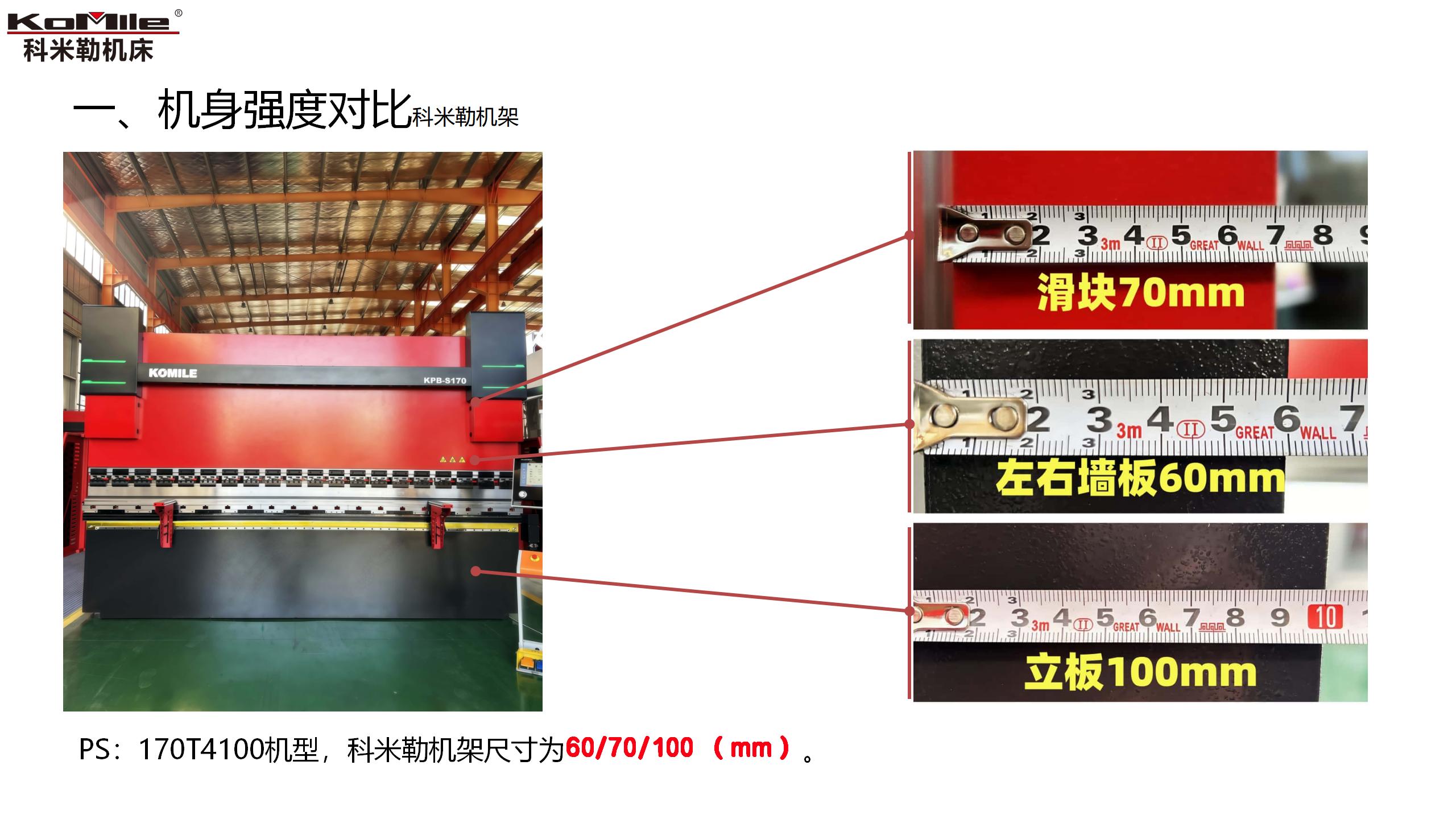

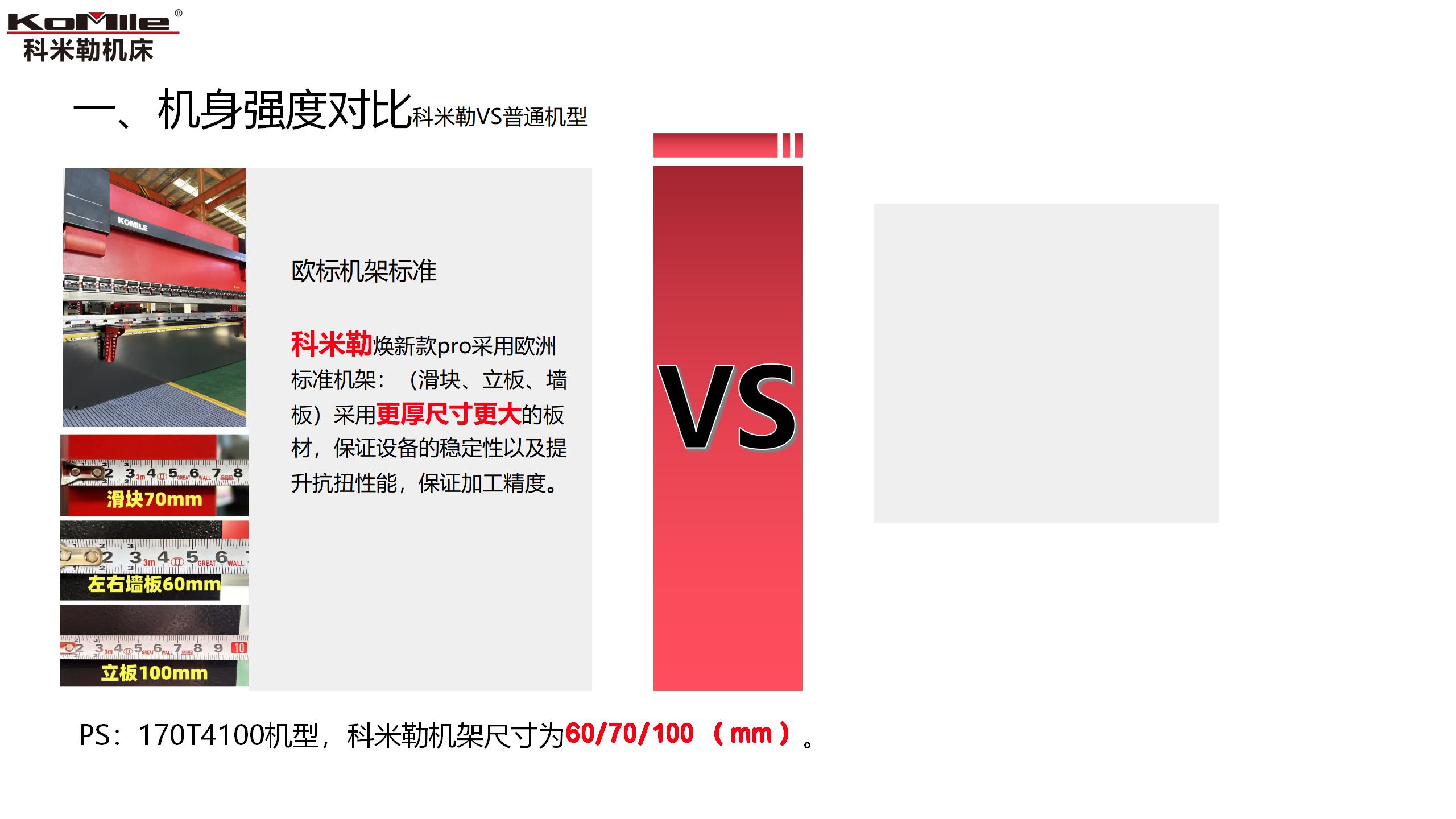

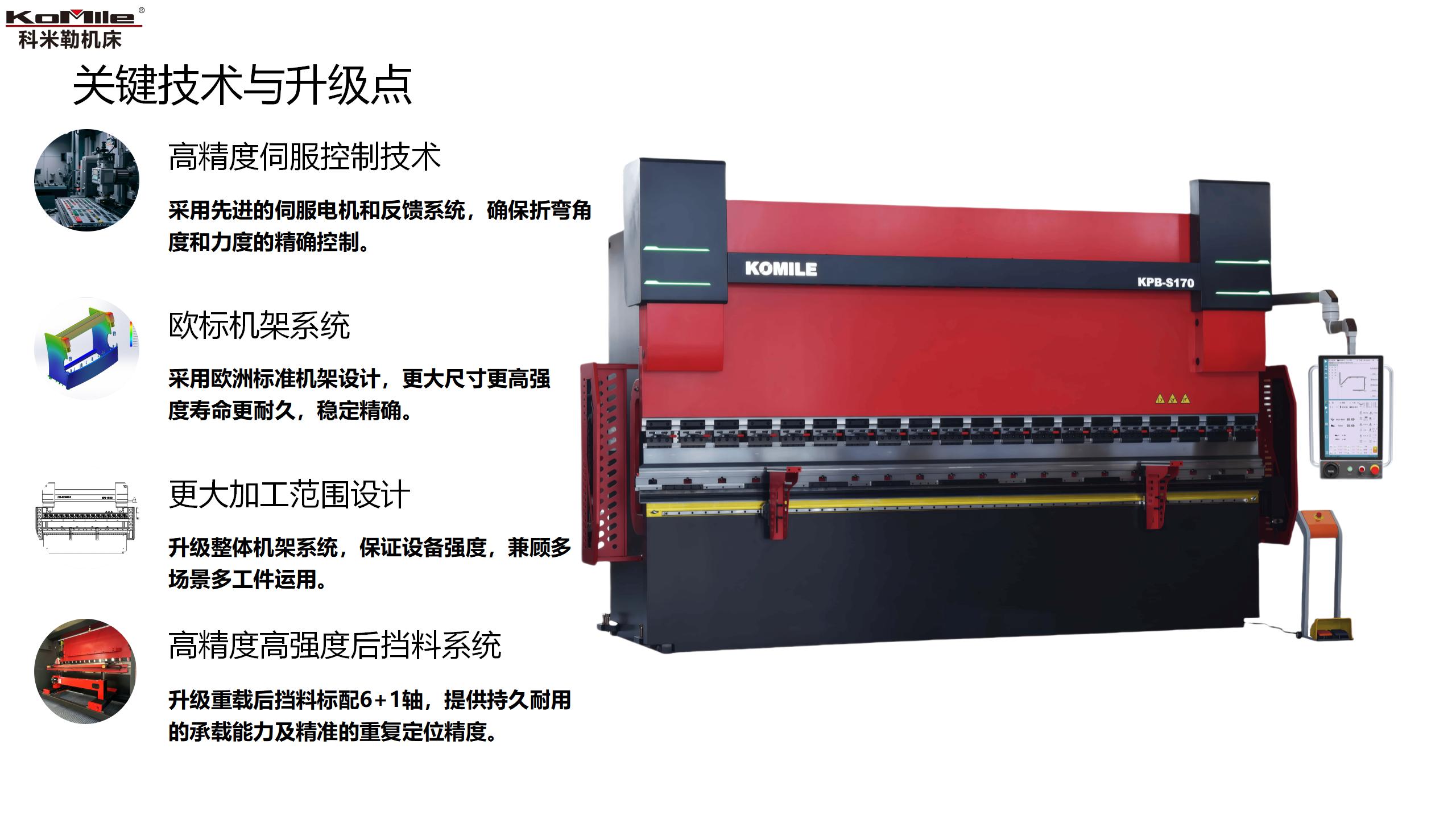

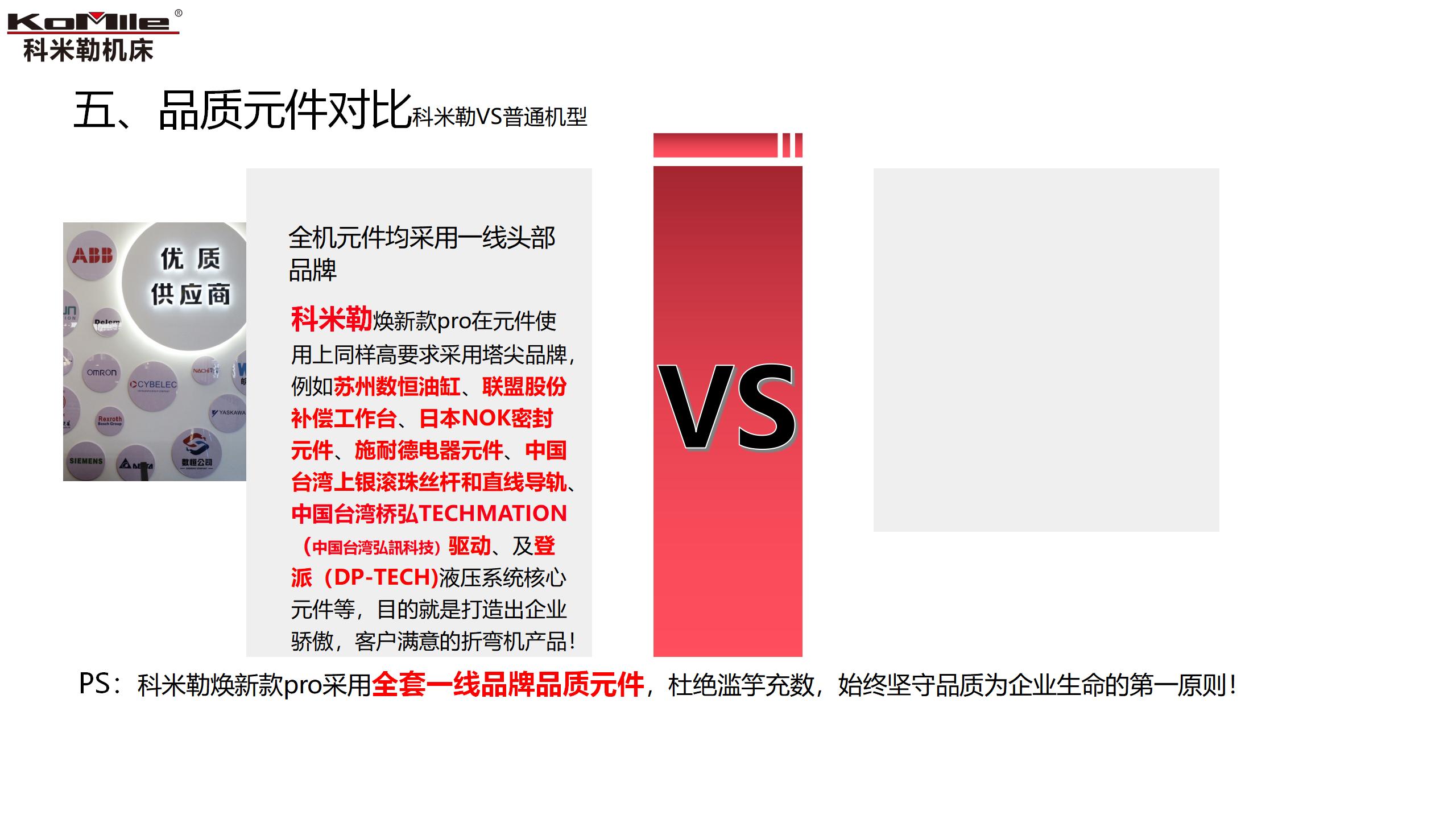

公称压力 Nominal pressure | 1700KN | 机器外侧宽度
Breadth of the machine | 4700mm |

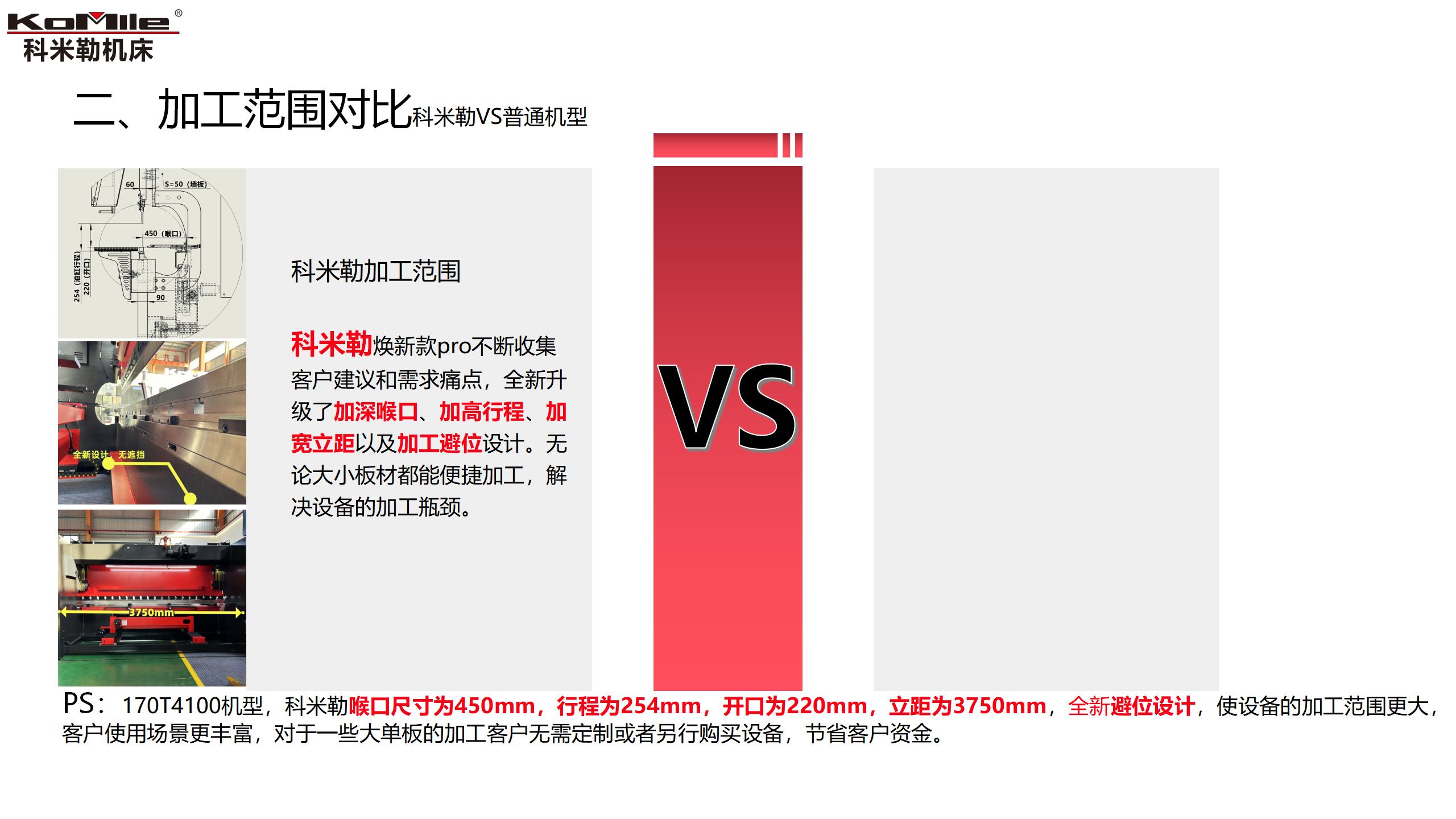

滑块行程
Slider stroke | 254mm | 机器外侧深度
Lateral depth of the machine | 1750mm(不含前托料） |

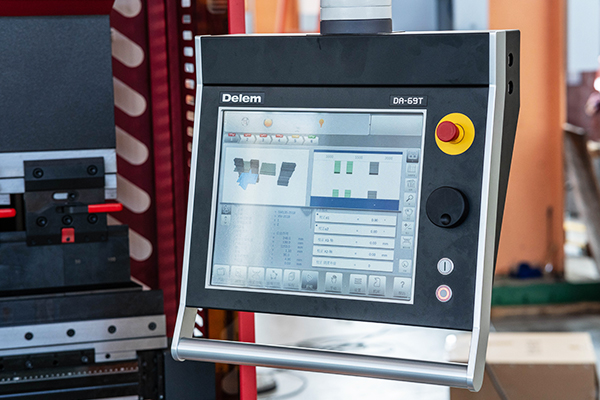

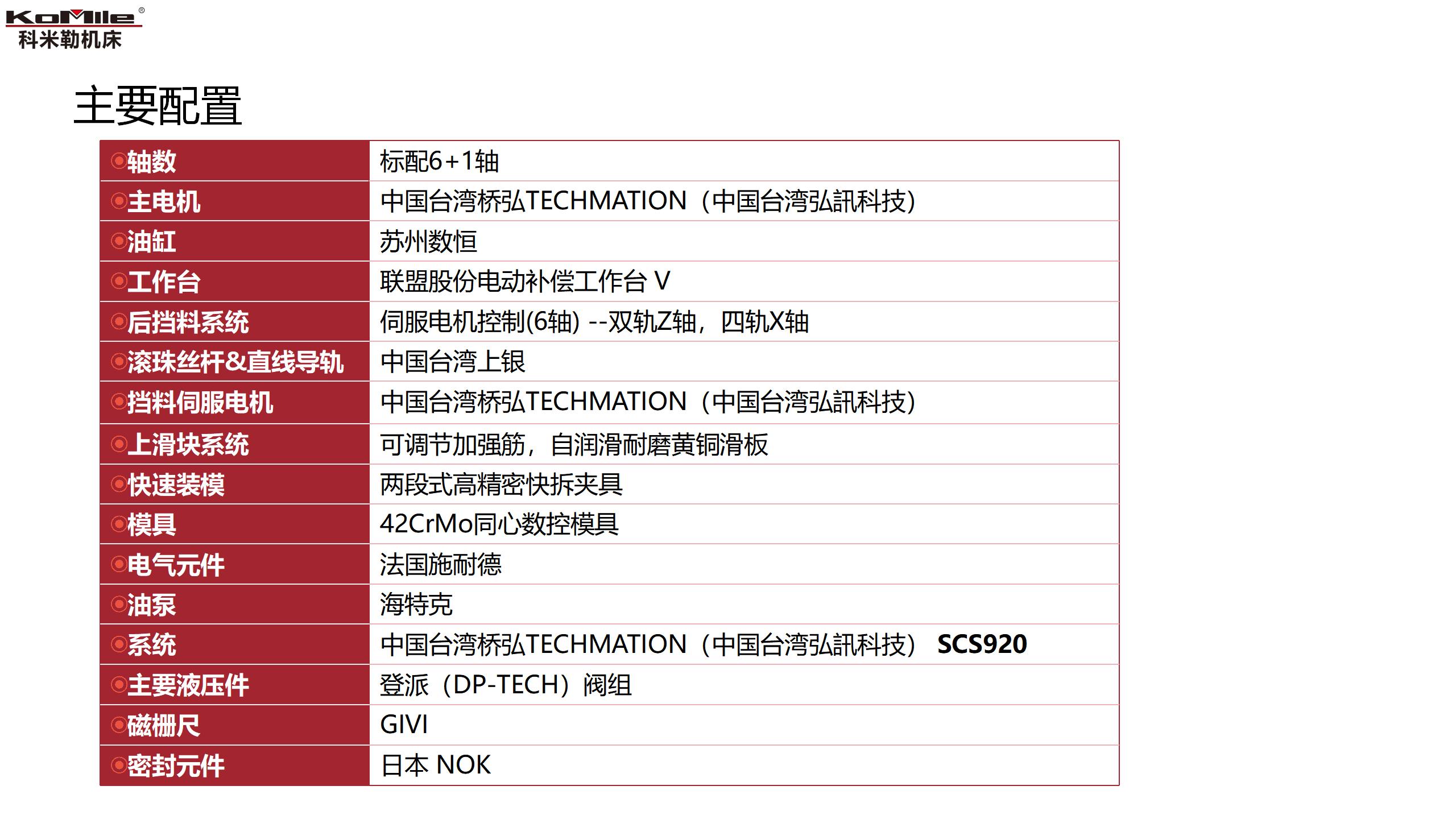

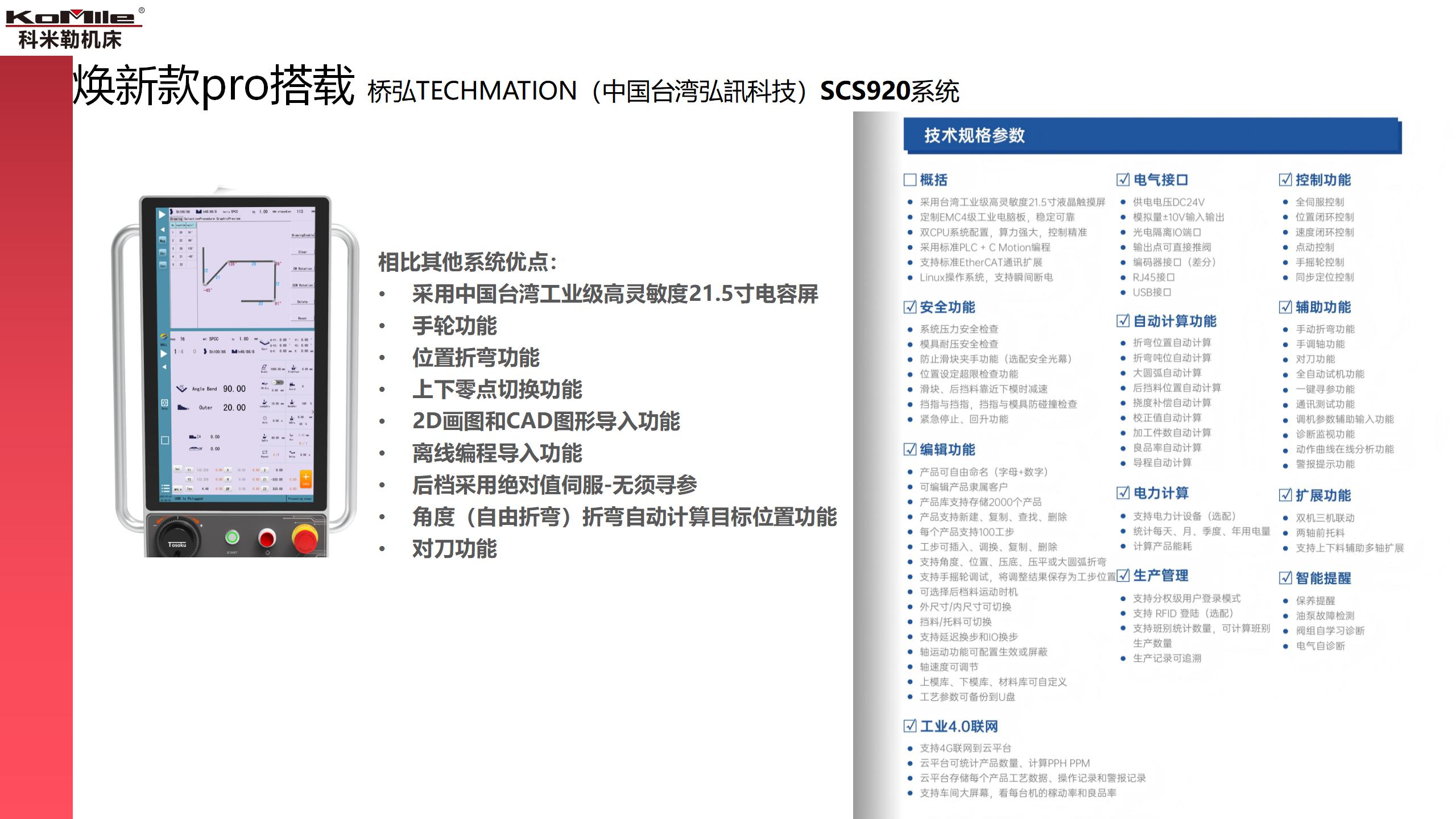

数控轴数
Numerical control axis number | 6+1/8+1 | 机器总高
Total machine height | 2950mm |

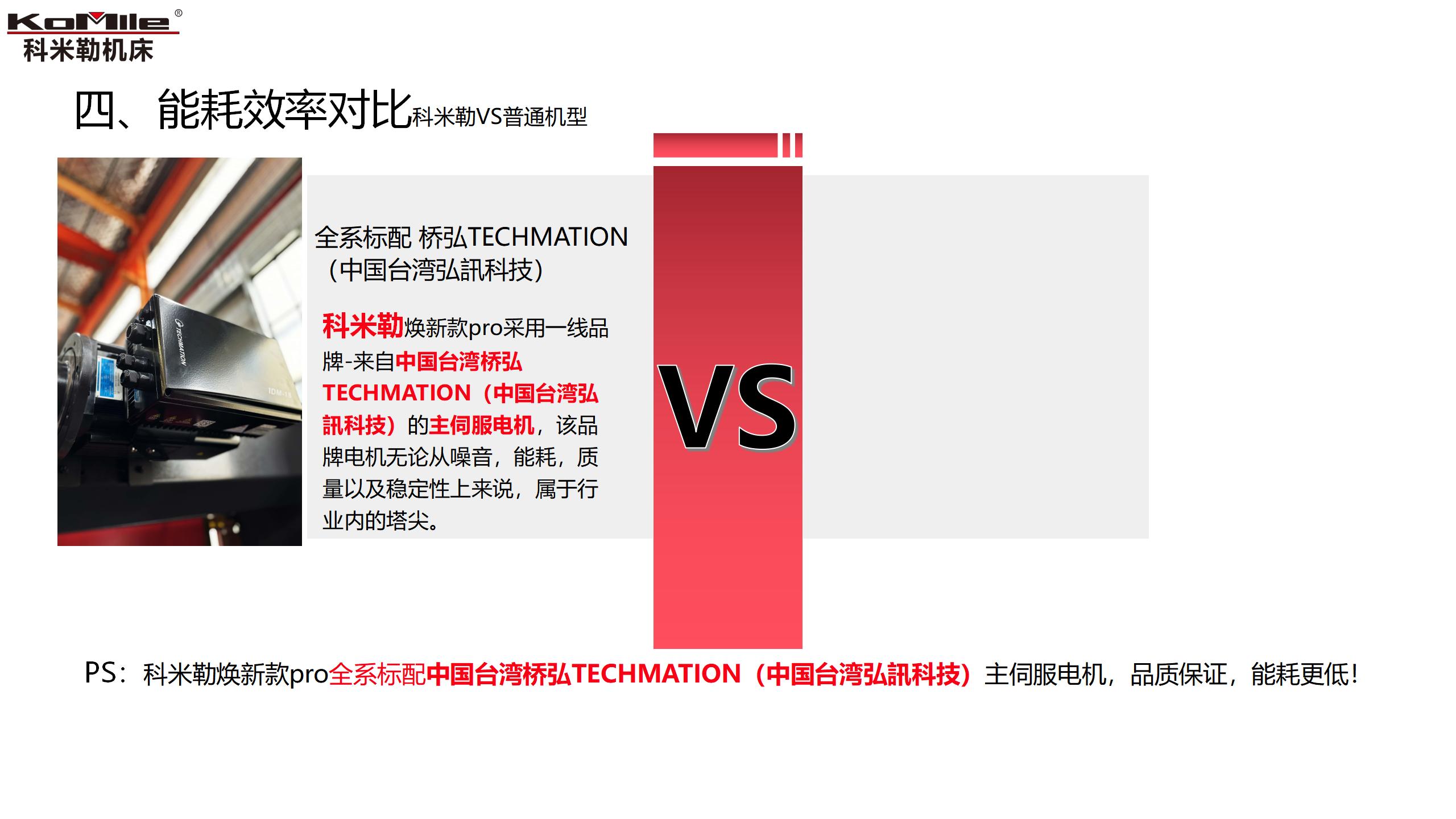

主电机功率
Main motor power | 18KW | 工作台长度
Workbench length | 4100mm |
滑块运行速度
Running speed of slider | 快下

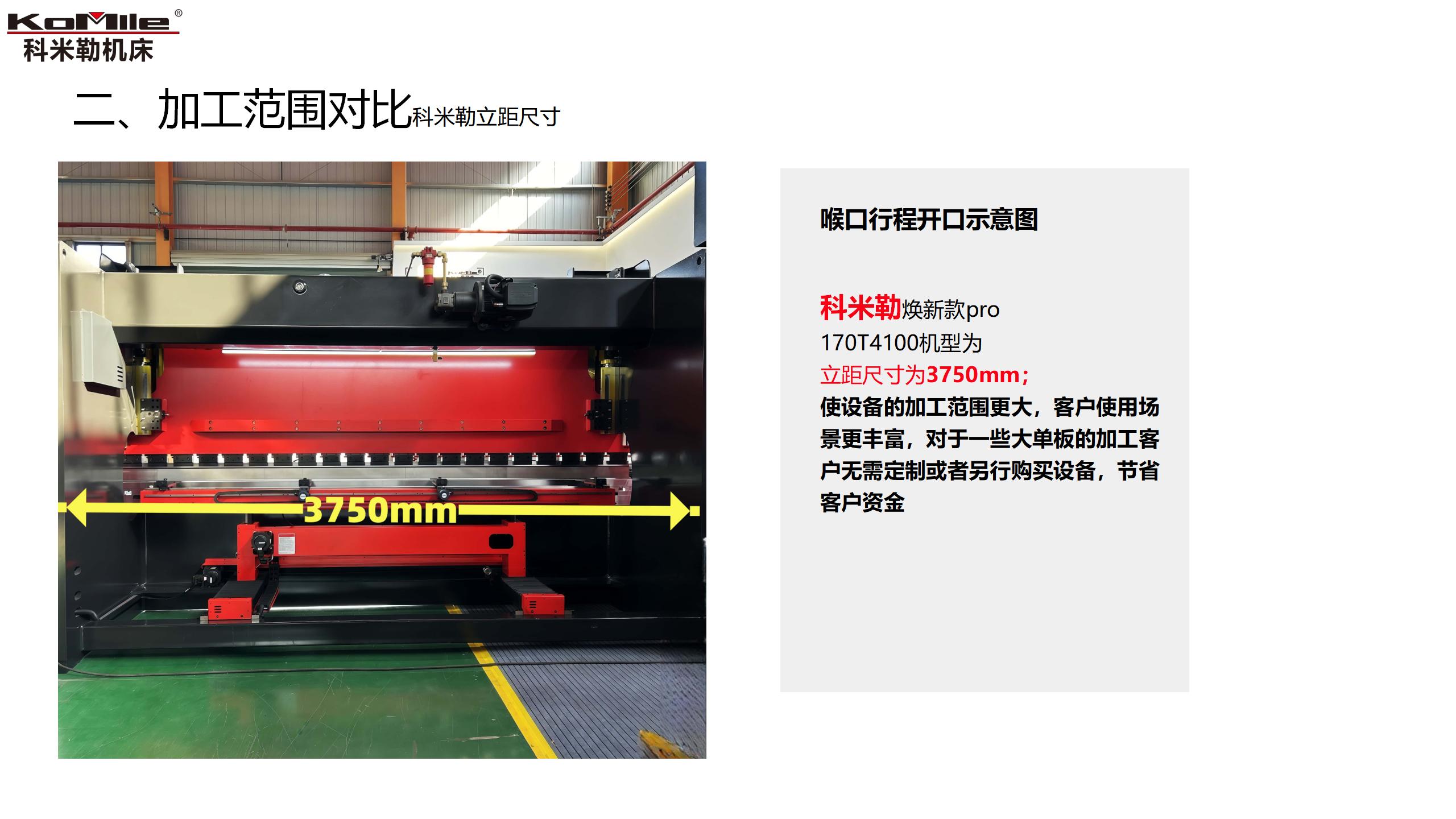

Fast | 200mm/s | 立柱间距
Column spacing | 3750mm |
工作

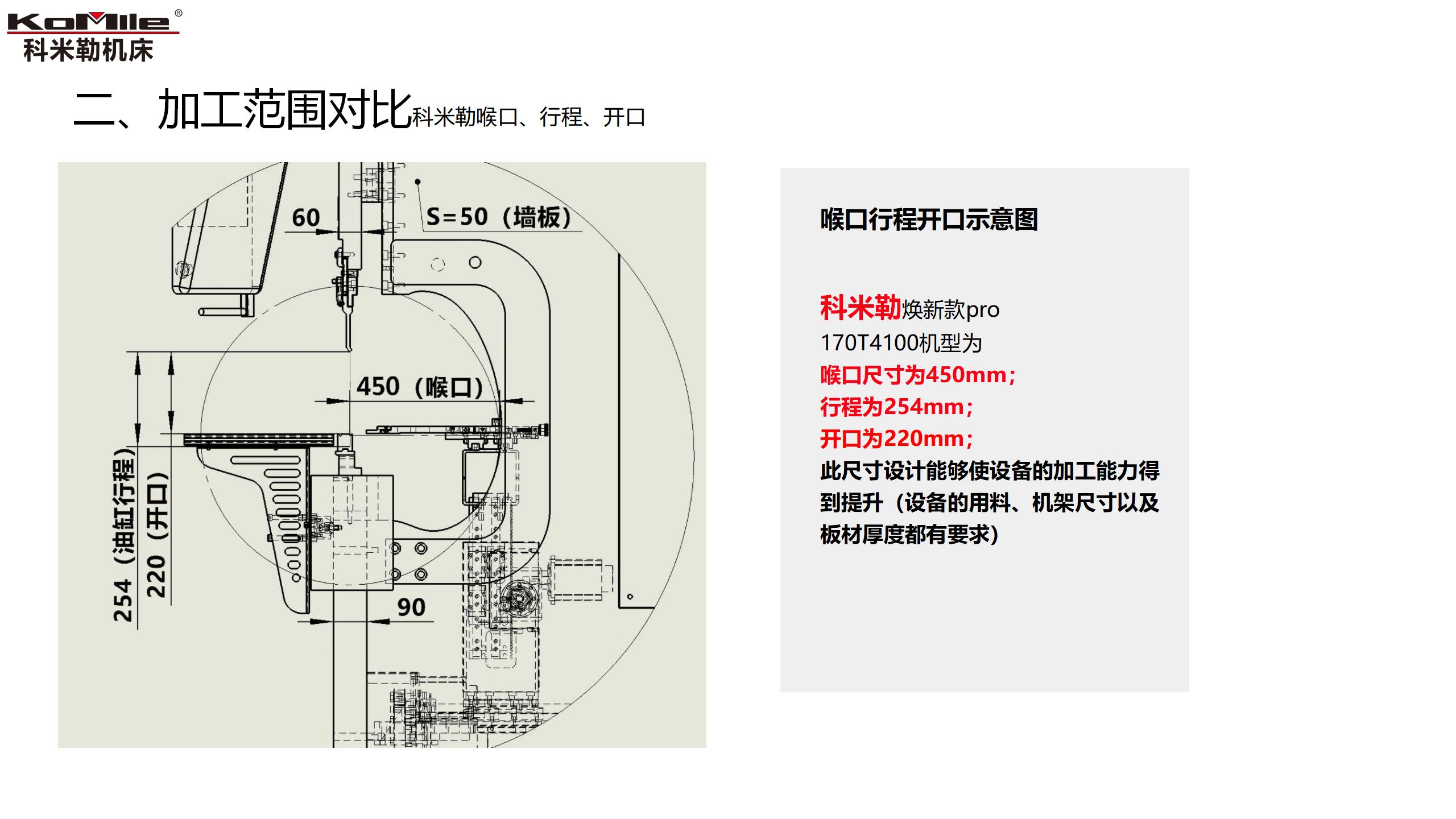

Work | 30mm/s | 开启高度Open height | 540mm |
回程
Retum trip | 200mm/s | 喉口深度Throat depth | 450mm |

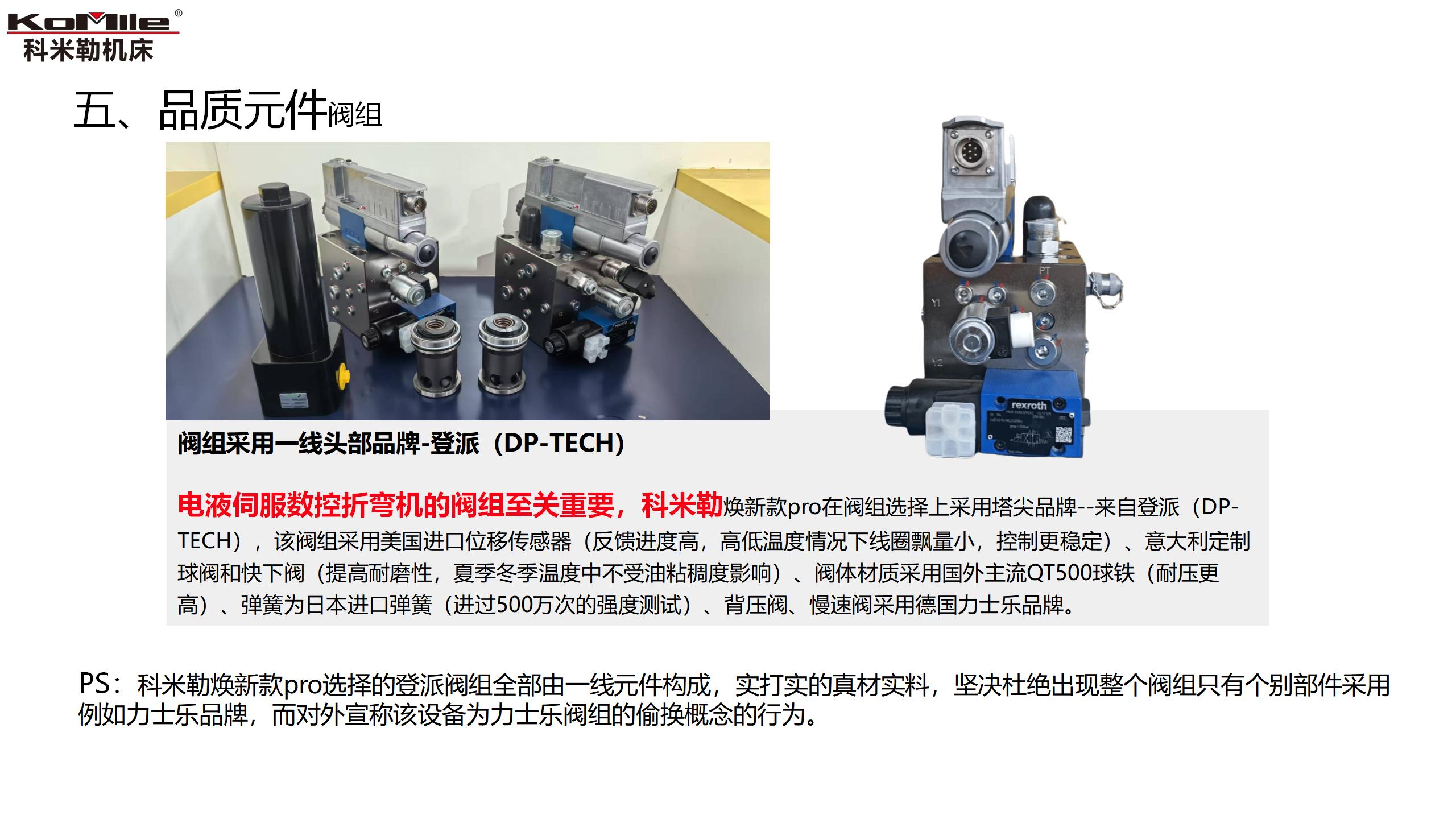

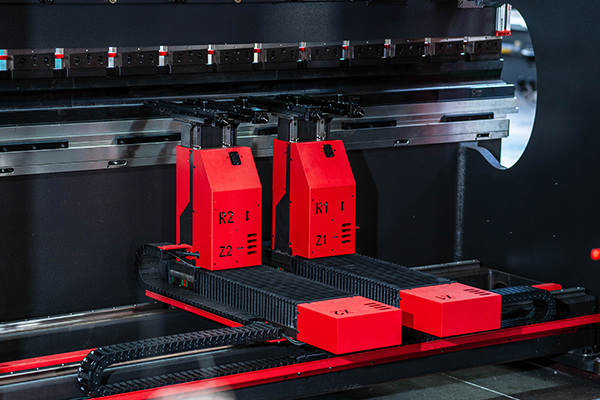

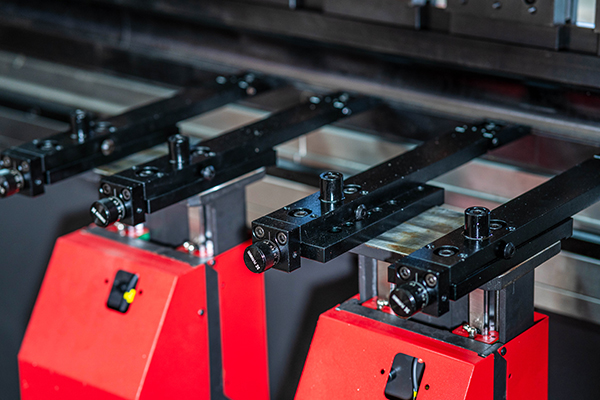

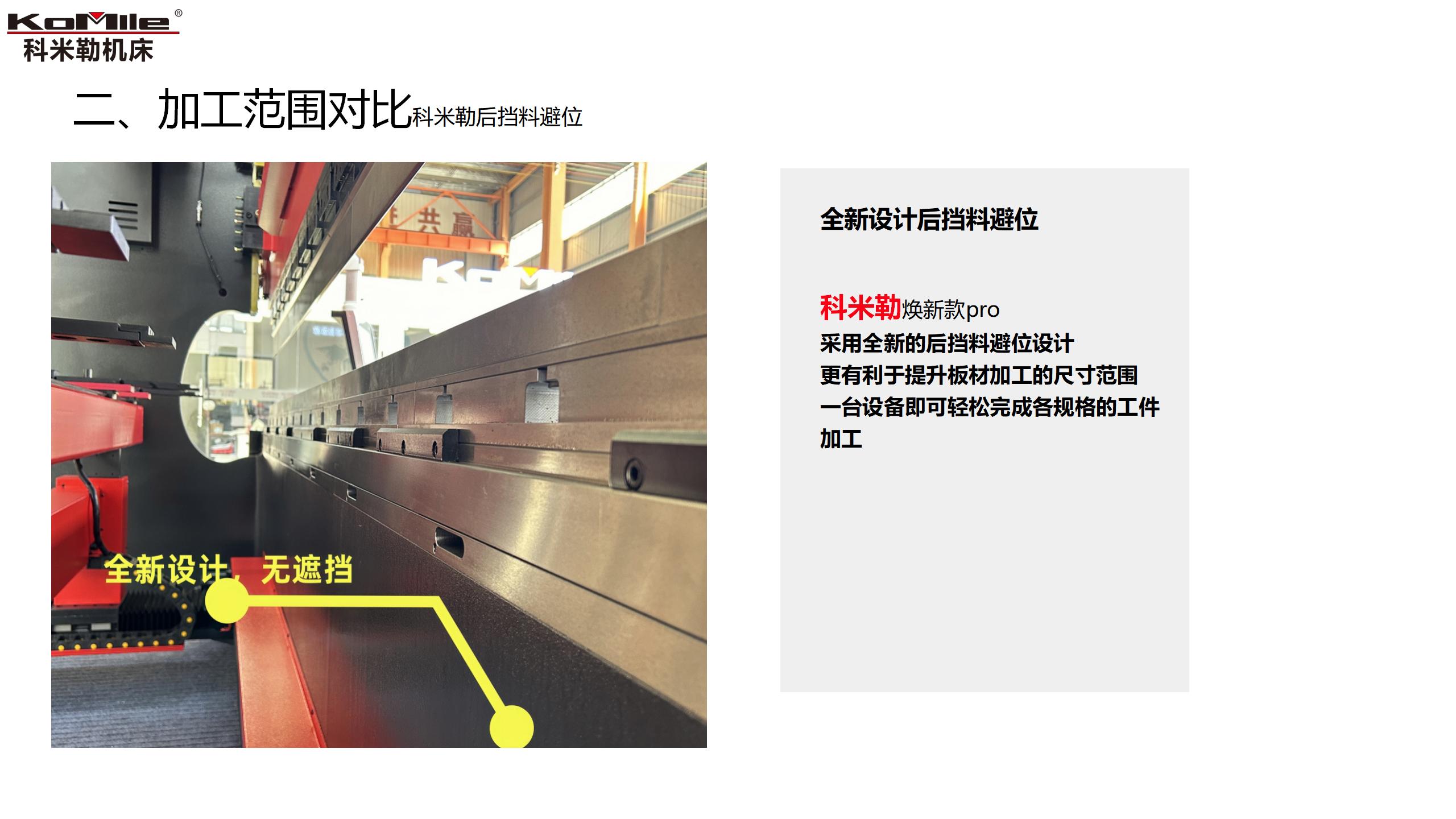

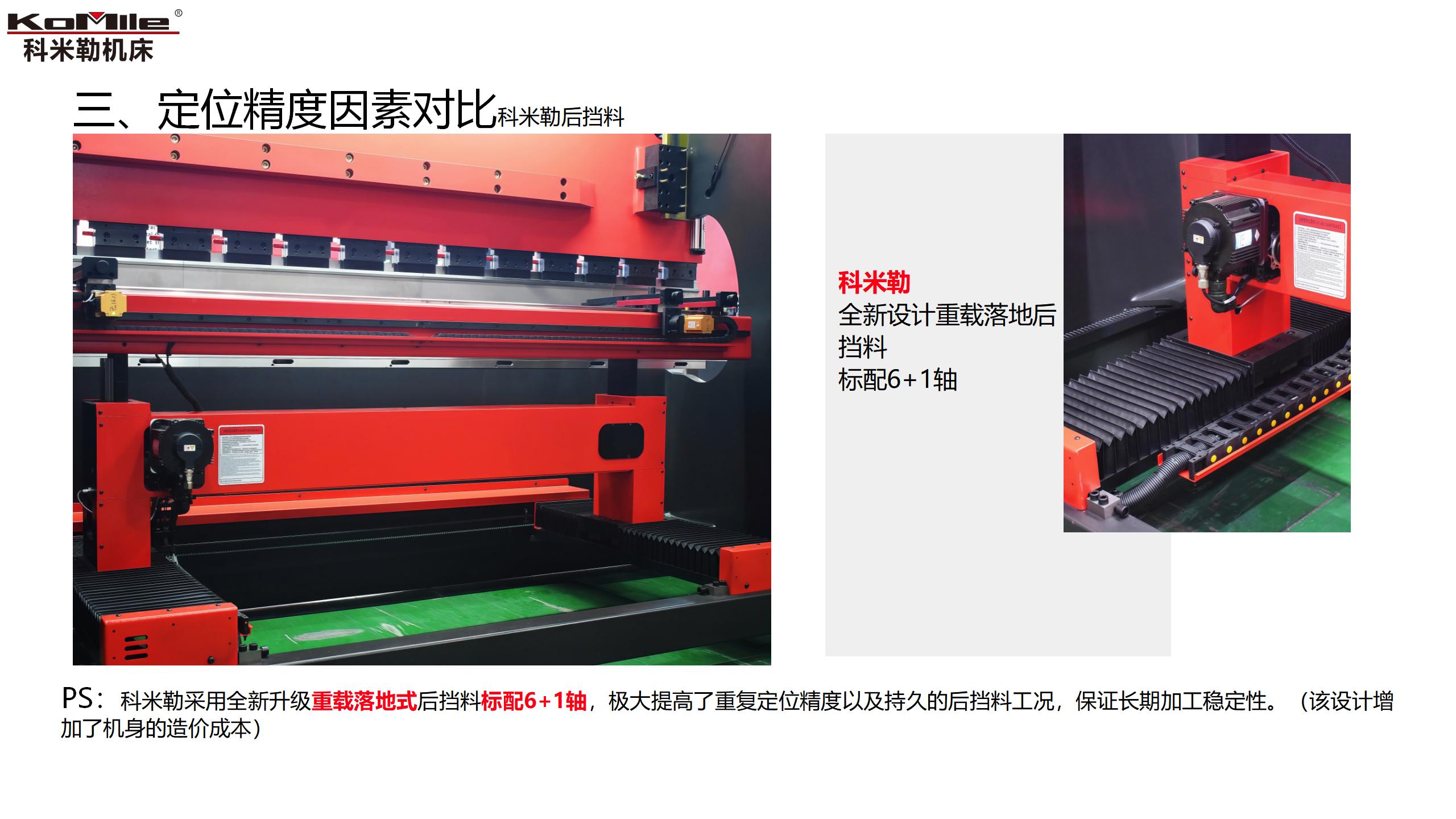

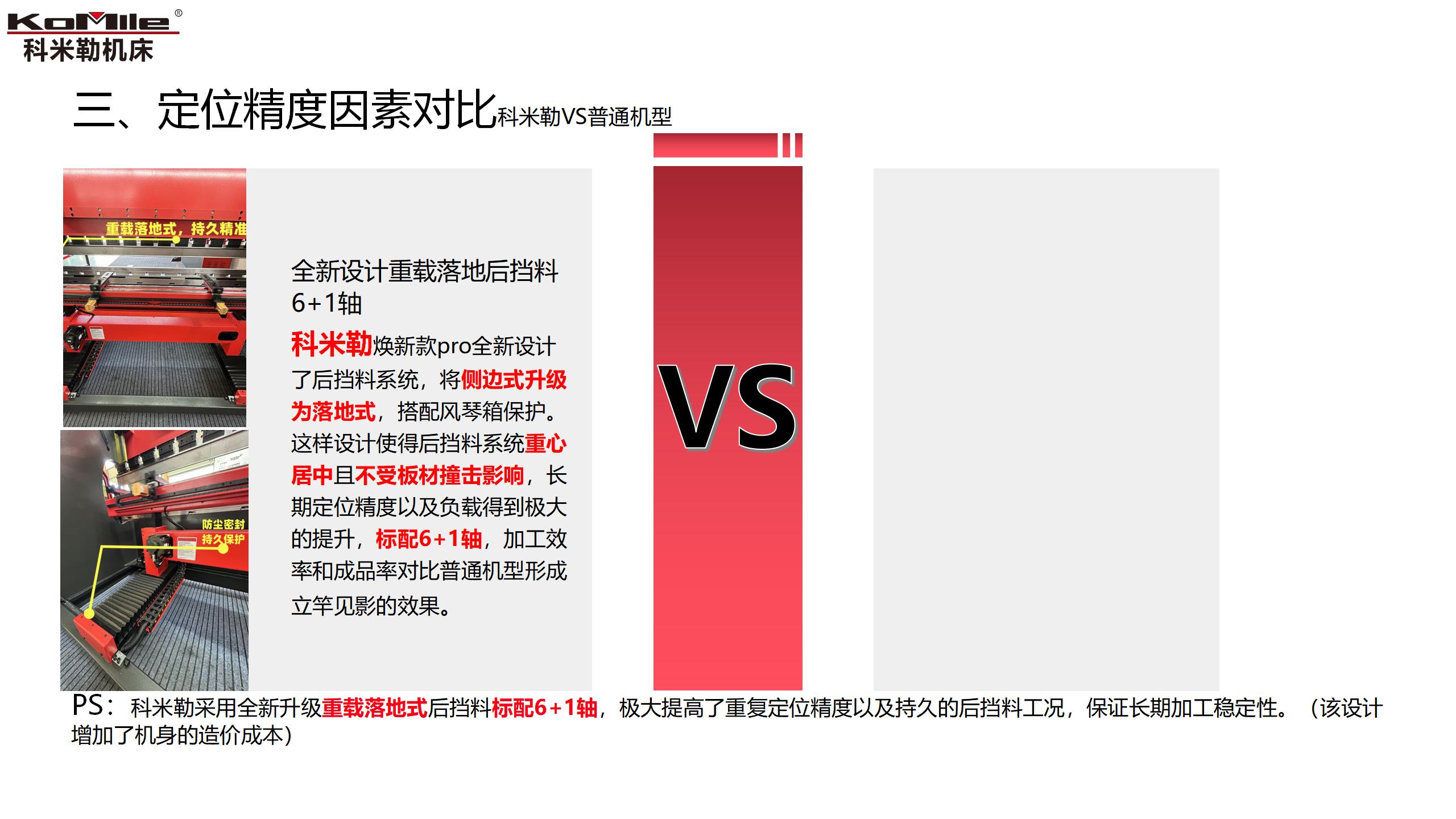

后挡料X轴
Real gear X shaft | 行程
Trip | 600mm | 注:
Y1、Y2轴-控制滑块上下运动
X轴-控制后挡料前后运动
R轴-控制后挡料上下运动 Z1轴、Z2轴-控制左右定位位置 V轴-机械挠度补偿
Note:
Y1, Y2 axis -control sliding block up and down motion
X axis - back and forth movement of control rear qear
R axis - control up and down movement of post-gear Z1 Axis, Z2 Axis - Control the left and right positioning positions V axis -mechanical defection compengation
|
最大运行速度 Maximum running speed | 600mm/s |
重复定位精度 Repeatable positioning accuracy | 0.02mm |
后挡料R轴
Real gear R shaft | 行程
Trip | 160mm |
最大运行速度 Maximum running speed | 300mm/s |
重复定位精度 Repeatable positioning accuracy | 0.02mm |
